GIANT hydraulic quick change system

Double acting valve at the front (mechanical)

Floating position on lifting cylinder(s)

ROPS/FOPS safety roof incl. safety doors left and right

ROPS / FOPS safetyroof incl. safety doors left and right

Mechanically suspended seat incl. safety belt and armrest

1x Double acting hydraulic function on lifting arm, mechanical

Luxury air suspended seat with safety belt, armrest and extended backrest

Floating position of lifting cylinder(s)

Hydraulic servicebrake on 4 wheels

Working light (halogen) front, on lifting arm

Battery, 77 Ah

Main switch

Anti-theft protection with access code

Working light (halogen) at the front

Towing hook

Counterweight integrated into the bumper

Oil cooler

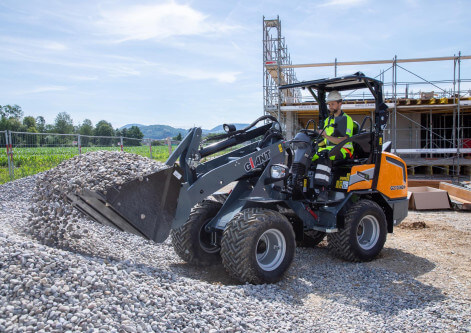

Working in small spaces is no issue with the G2700 HD+ due to the articulated-pivot steering system. This system ensures a small turning radius and provides the mini loader with stability, keeping all four wheels on the ground. This allows for safe operation on uneven terrain and ensures ample pulling force.

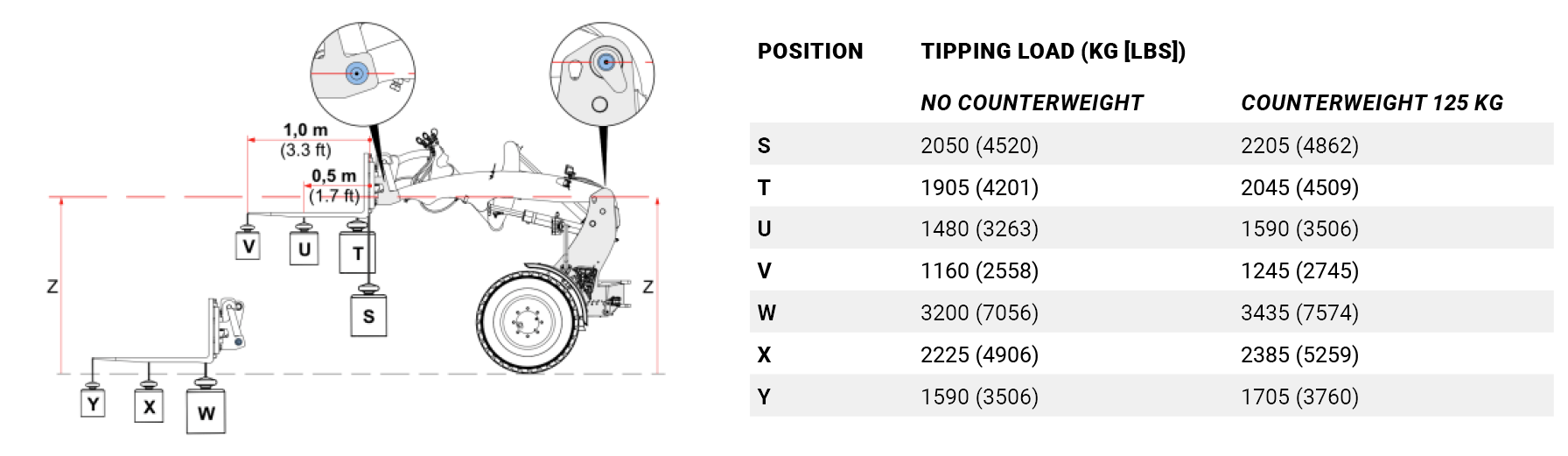

Tipping loads of the machine

The table shows the tipping loads at different positions of the machine. The tipping load is the maximum weight the machine can lift while remaining stable and not tipping. The actual tipping load depends on the configuration of the machine, such as various options, attachments and working position.

Specifications

Service weight ¹ 2600 kg

Lifting capacity 1900 kg

Tipping Load ² 2225 kg

Lifting height ³ 2980 mm

Length without bucket 3410 mm

Machine height ⁴ 2340

Width on standard tires 1140 mm

Standard tires 11.5/80-15.3 AS

Travel Speed 0-10 km/h 0-30 km/h

Engine Kubota D1803 CR DOC/DPF (STAGE V)

Cylinders 3
